1.Technical check and useful information
Fill up your IT person contact below to share with him the needed information.
QOS-
Please set the voice traffic to the highest priority.
Firewall ports and traffic to allow:
Sip:5060,5744
Rtp: UDP ports (1024 to 65535)
Web: VO-8082, Portal-8445
Provisioning: Remote TCP 80/443.
Mobyx: Remote UDP 1221
Static IP Dresses:
If you need us to set static address, please provide IP BY EXTENTION.
Please Use a Computer to run this test
2.Network SCANNER
1. Please choose your operating system to download and install
2. Once Completed please press the buton below:
3. Coose 'VNA Test and insert the number of extensions in 'Lines to simulate' and press RUN

4. Email Support the results

Once the installer has been downloaded locate it on your computer, right click the icon and select Run As Administrator
Click the Next button to go to the next step.

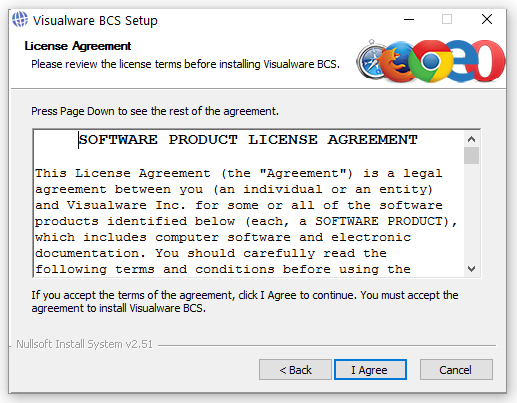

Click I Agree to accept the license agreement.
We recommend leaving the Check to run the BCS automatically check box checked (admin users only, non admin? Click here).
The benefits of this include automatic updates (the user will always be asked permission before updating) and running silently.
This means the user won’t have to start the BCS every time they want to perform a test.
Specify the installation folder and then click Install.
The installation should complete successfully. Click Close to complete the installation.
Non Admin Installation
When the installer is run without admin privileges the run automatically checkbox will be greyed out. When this is the case the default installation directory is the users Desktop.
The installation will place a filed named thebcs.exe on the Desktop. Double click this file to start the BCS. A small dialog will popup stating that it is running in the background.
The BCS will NOT start up on reboot in this scenario.
Once the PKG installer has been downloaded locate it on your computer, right click the icon and select Open
A standard installer window will appear. Click Continue to begin the installation.
Click Install for me only followed by the continue button
If you wish to use a different install location then click the Change Install Location button. Click Install to begin the installation.
A user password will be required to permit the installation. Enter the password and click the Install Software button.
The installation should then complete. Click close to finish the process.
The test environment should now load. If not the machine may require a restart.
Step 1: Once the TAR file has been downloaded untar it using the tar -xvf bcs_linux.tar command. This will unpack the bcs.tar and bcs_configure.sh.
Step 2: Run the configure script using sudo sh bcs_configure.sh. Follow the prompts to complete the install.
